i510

Trieda ochrany IP20
CANopen and Modbus RTU

0.25 kW ... 15 kW

i550

Trieda ochranys IP20
CANopen, EtherCAT, PROFINET, PROFIBUS

0.25 kW ... 132 kW

i550 motec

Trieda ochrany IP66
EtherCAT, CANopen, PROFINET...

0.37 kW ... 45 kW

i550 protec

Trieda ochrany IP55/66
CANopen, EtherCAT, PROFINET, PROFIBUS

0.37 kW ... 75 kW

8400 motec

Trieda ochrany IP54/65
CANopen, EtherCAT, PROFINET, PROFIBUS

0.37 kW ... 7.5 kW

8400 protec

Trieda ochrany IP54/65
CANopen, EtherCAT, PROFINET, PROFIBUS

0.37 kW ... 7.5 kW

i700

Compact multi-axis servo
Central motion control

1.1 kW ... 15 kW

i750

Compact multi-axis servo
Central motion control

0.75 kW ... 15 kW

i950

Intelligent servo
Demanding servo applications

0.37 kW ... 110 kW

8400 TopLine

Intelligent servo
Simple servo applications

0.25 kW ... 45 kW

9400 HighLine

Intelligent servo
Demanding servo applications

0.37 kW ... 240 kW

9300

Servo inverter
Previous product

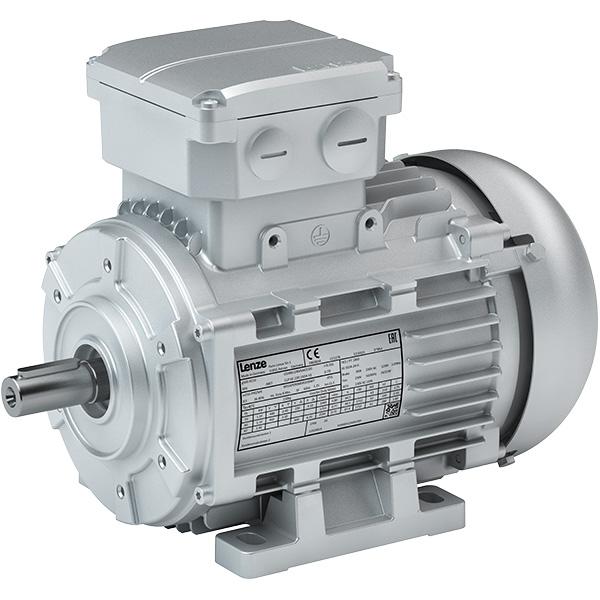

m500

Energy efficiency classes
IE2​/IE3
Scalable modular system

0.12 kW ... 22 kW
1 Nm ... 142 Nm

m600

Inverter-optimized
120Hz
Large settings range with small size

0.55 kW ... 22 kW
1 Nm ... 60 Nm

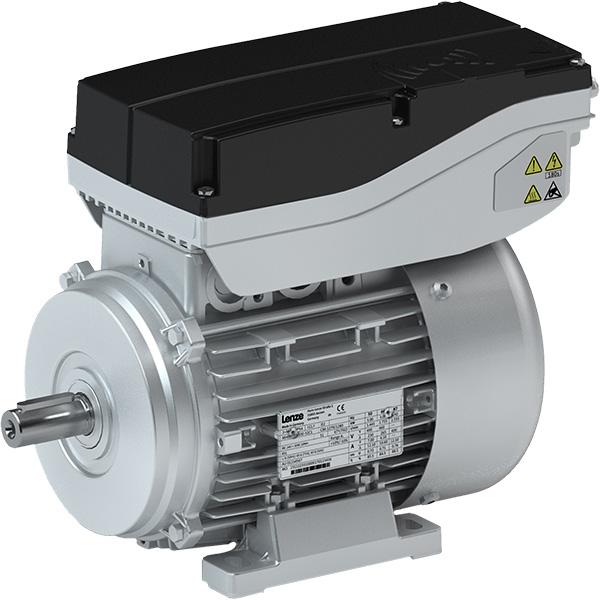

m300

5 adjustable fixed speed
Smartphone operation

0.47 kW / 1.36 kW
1.75 Nm / 5 Nm

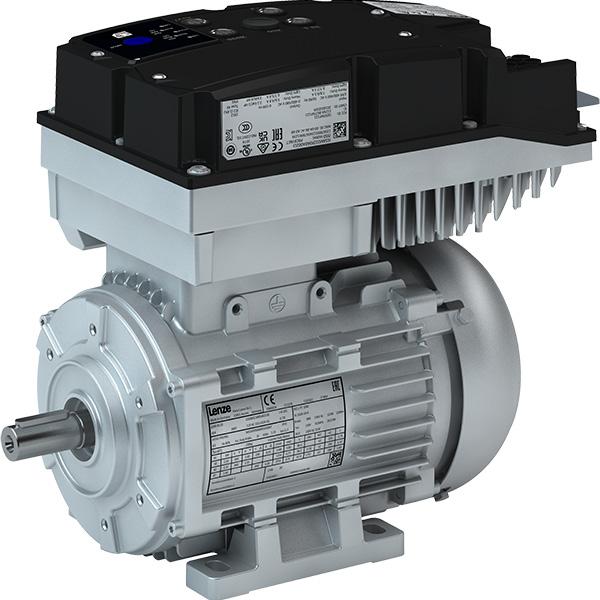

m500+i550

With integrated inverter
Scalable modular system

0.25 kW ... 5.5 kW
1.7 Nm ... 35 Nm

MF+8400

With integrated inverter
Large setting range with small size

0.12 kW ... 7.5 kW
1.5 Nm ... 20 Nm

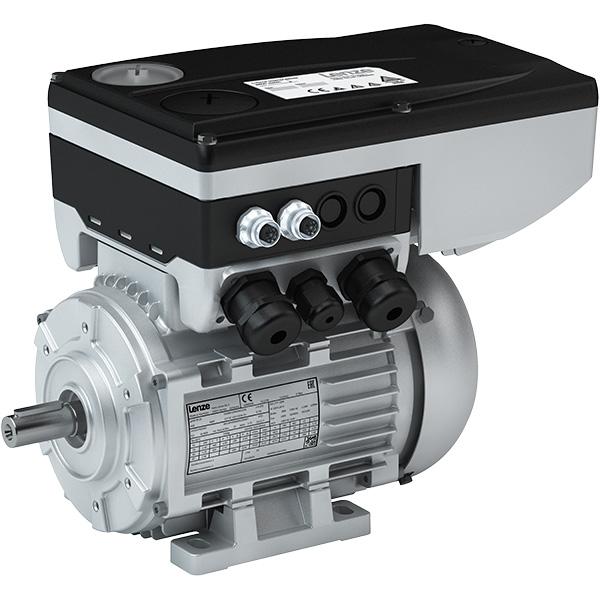

m500+8400

With integrated inverter
Scalable modular system

0.12 kW ... 7.5 kW
1.5 Nm ... 50 Nm

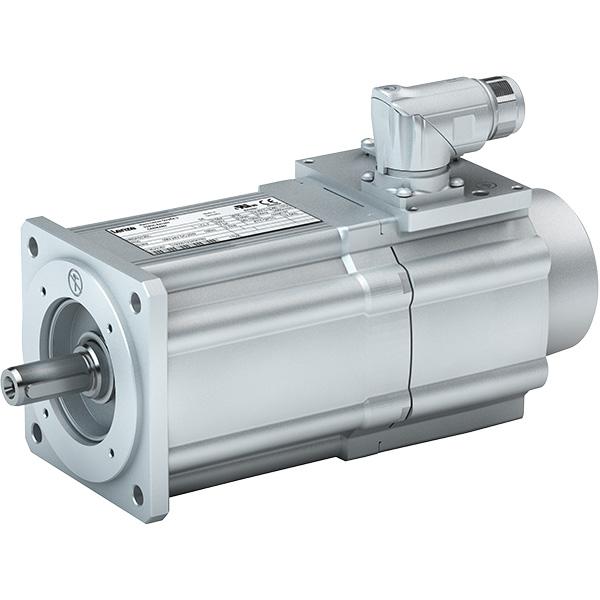

MCS

High dynamics
High precision

0.25 kW ... 15.8 kW
0.5 Nm ... 53 Nm

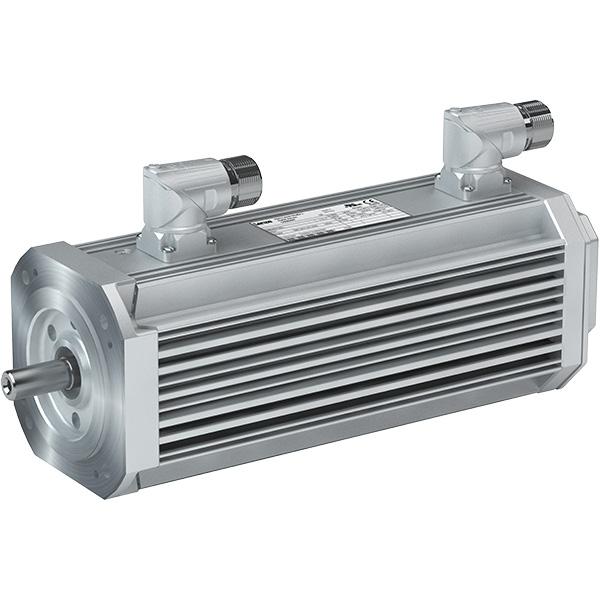

MCA

Space-saving
High oprational reliability

0.8 kW ... 53.8 kW
2 Nm ... 280 Nm

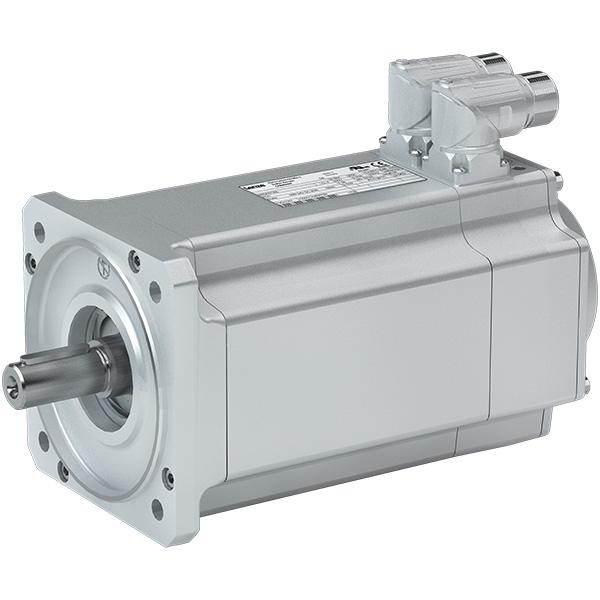

M850

Medium dynamics
Compact and economical

2 kW ... 9.2 kW
4.8 Nm ... 35 Nm

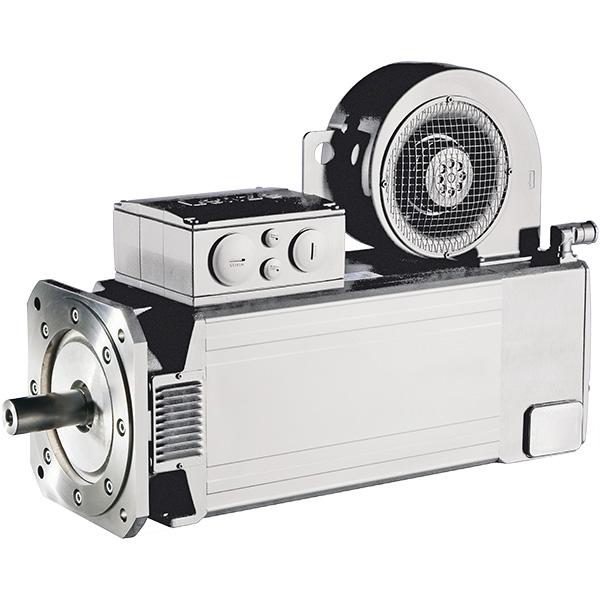

MQA

Radial-flow fan
For main drives

10.6 kW ... 60.2 kW
66 Nm ... 296 Nm

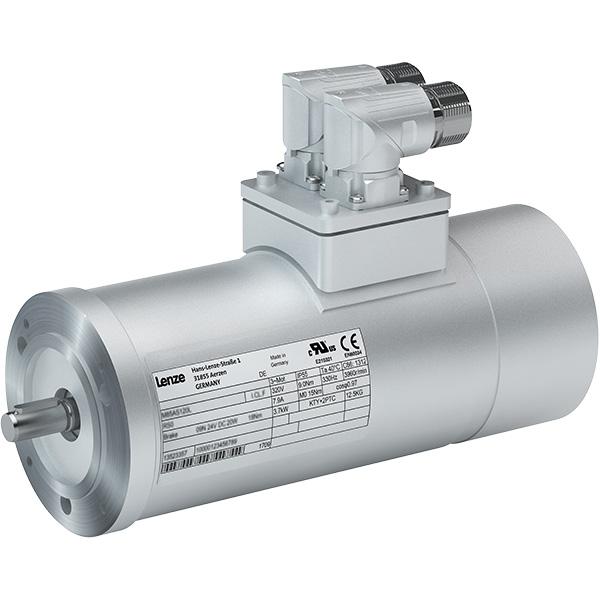

SDSGA

Smooth surface
Resolver as feedback

0.075 kW ... 0.6 kW
0.27 Nm ... 1.9 Nm

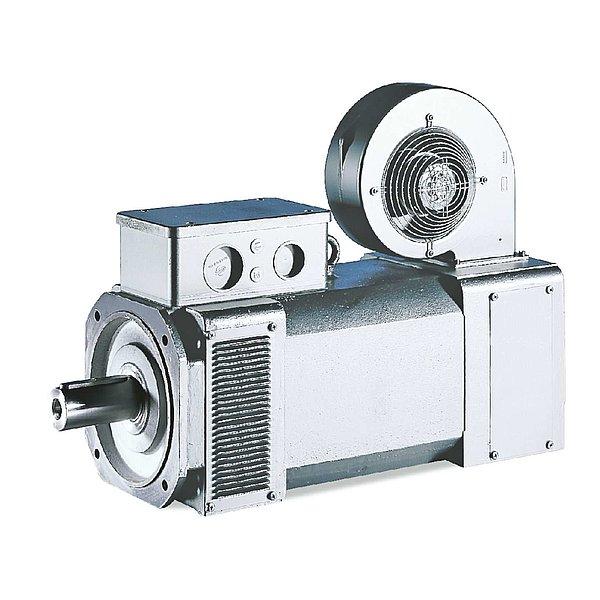

MDFQA

Radial-flow fan
For main drives

22.6 kW ... 95 kW

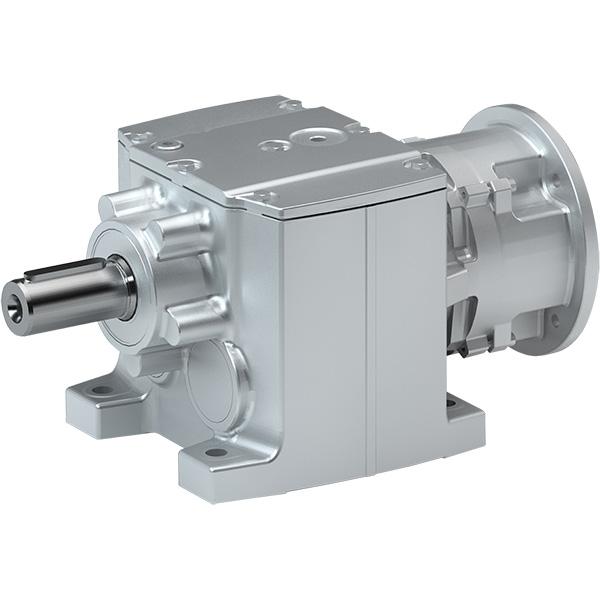

g500-H

Robustná
Universally applicable

0.12 kW ... 55 kW
3 Nm ... 14 000 Nm

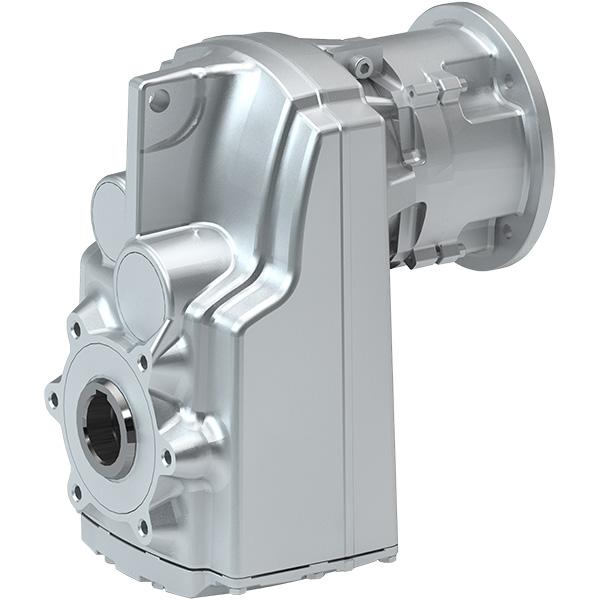

g500-S

Slim
Space-savings

0.12 kW ... 55 kW
6 Nm ... 19 000 Nm

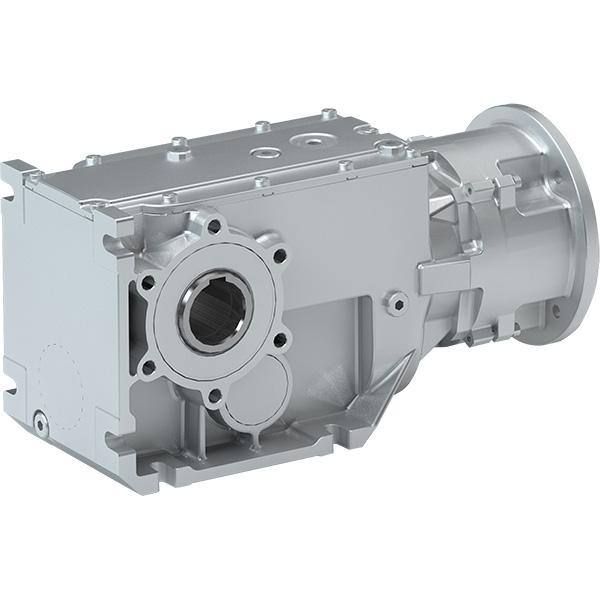

g500-B

Highly efficient right-angle gearbox
Compact

0.12 kW ... 55 kW
6 Nm ... 20 000 Nm

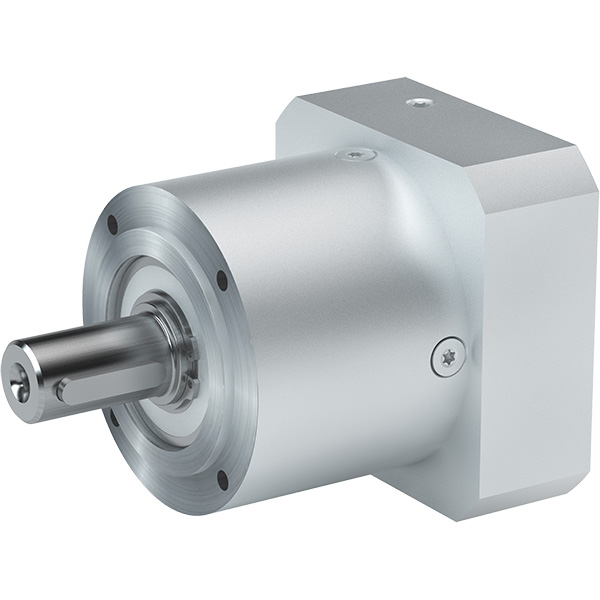

g7x0-P

Economical
Low backlash

0.02 kW ... 13.5 kW
4 Nm ... 800 Nm

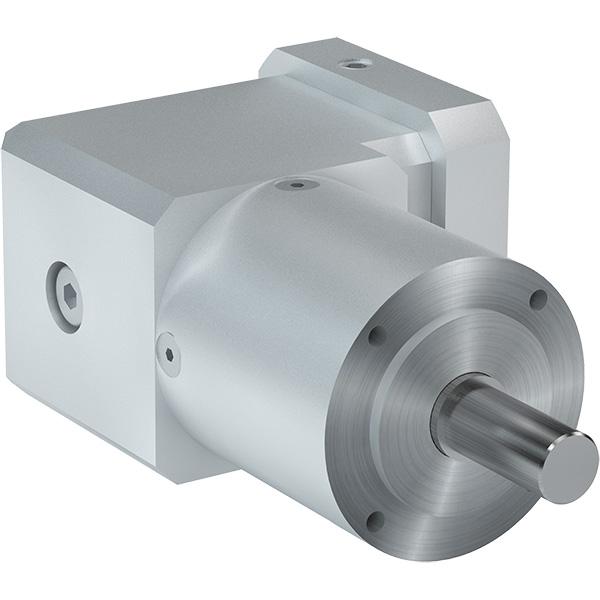

g7x0-B

Economical
Low backlash

0.03 kW ... 5.8 kW
2 Nm ... 260 Nm

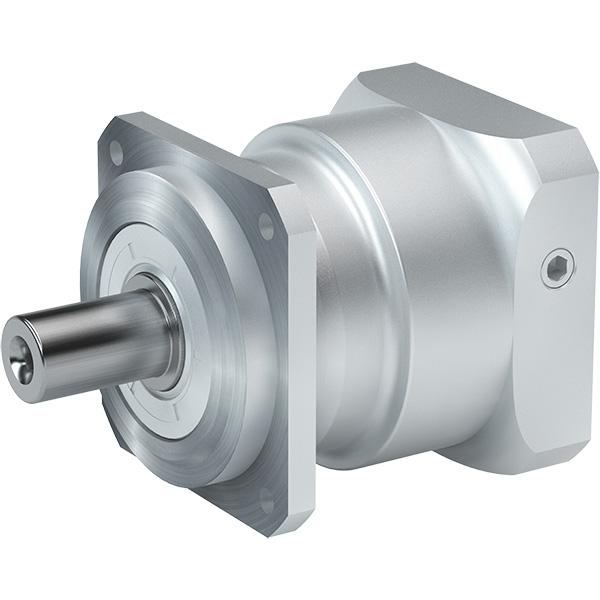

g8x0-P

Very precise
Very low backlash

0.17 kW ... 21.07 kW
27 Nm ... 1800 Nm

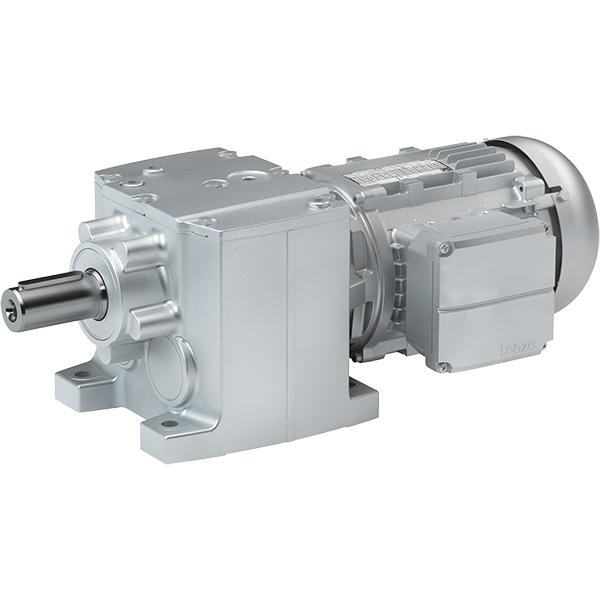

g500-H
+
m500

Trieda energetickej účinnosti
IE2​/IE3
Robust

0.12 kW ... 55 kW
3 Nm ... 14 000 Nm

g500-S
+
m500

Trieda energetickej účinnosti
IE2​/IE3
Slim

0.12 kW ... 55 kW
3 Nm ... 19 000 Nm

g500-B
+
m550

Trieda energetickej účinnosti
IE2​/IE3
Highly efficient right-angle gearbox

0.12 kW ... 55 kW
6 Nm ... 20 000 Nm

g500-H
+
MF

Optimalizovaný pre FM 120Hz
Exceed energy efficiency
Class IE2
Robust

0.55 kW ... 22 kW
4 Nm ... 3000 Nm

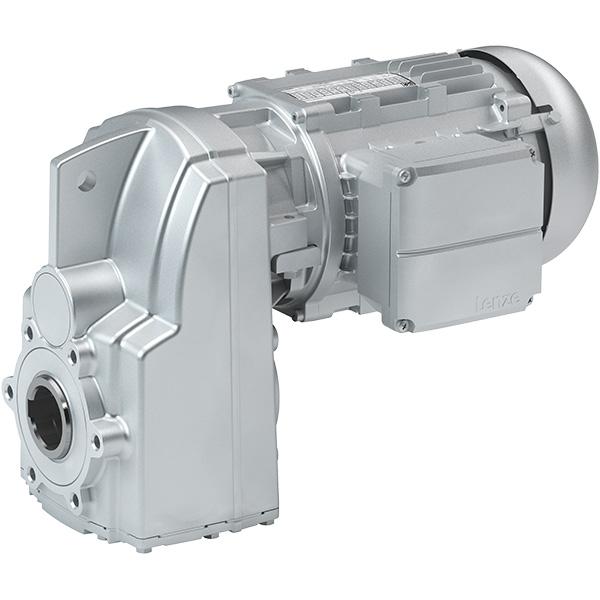

g500-S
+
MF

Optimalizovaný pre FM 120Hz
Exceed energy efficiency
Class IE2
Slim

0.55 kW ... 22 kW
5 Nm ... 4500 Nm

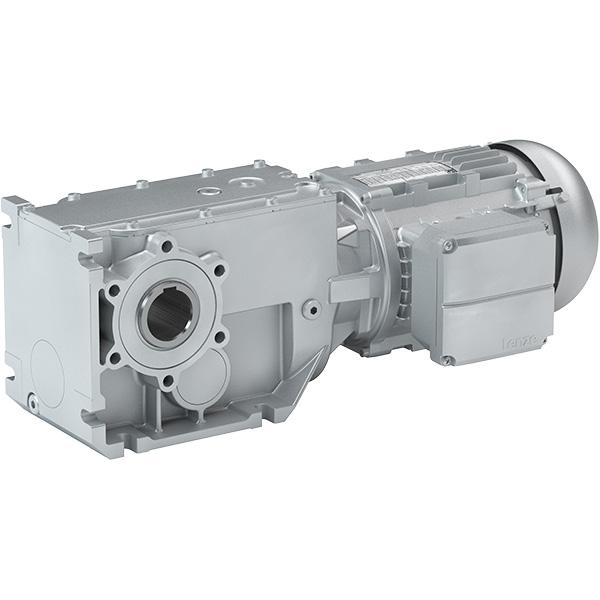

g500-B
+
MF

Optimalizovaný pre FM 120Hz
Exceed energy efficiency
Class IE2
Highly efficient right-angle gearbox

0.55 kW ... 22 kW
5 Nm ... 4500 Nm
