V45AP78000000S

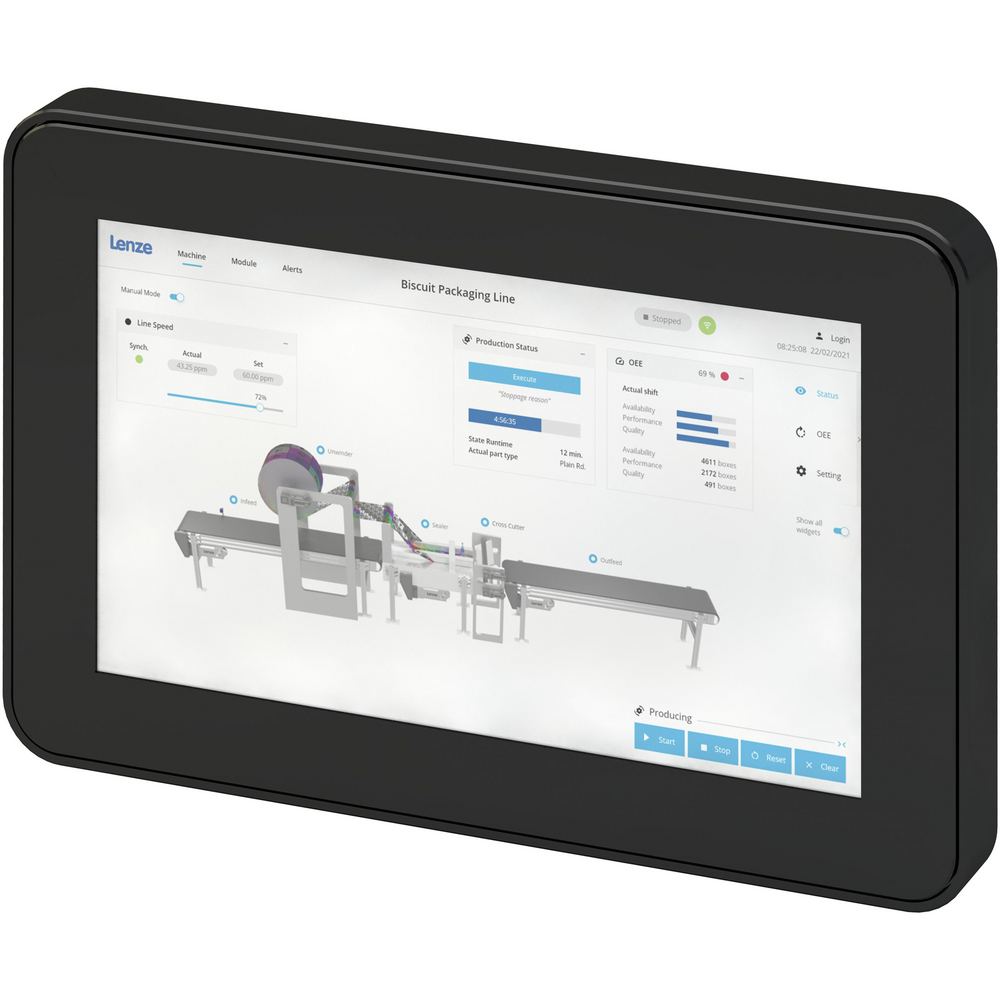

v450 WEB Panel 7" farebný TFT displej, PoE Ethernet 10/100 Mbps, i.MX8M Mini Quad ARM Cortex-A53 (1,60 GHz), Linux, multidotykové sklo na prednej strane, trieda ochrany IP67, moderný a tenký dizajn.
Aesthetic machine visualizations in modern design, which can also be operated intuitively, are becoming increasingly important. With the v450 web panel and our web-based offer, consisting of the EASY UI Designer project planning tool and the FAST UI Runtime on the c430, c520, and c550 controllers, we offer a solution for such visualizations.
The v450 web panel has a fully enclosed housing with IP67 protection and is therefore suitable for flexible applications. It can be mounted on a support arm, on a wall, or on the control cabinet wall. The cabling effort is minimal, since communication and power supply take place via Power over Ethernet (PoE). A USB interface is offered via an adapter cable.
Highlights
- TFT color display in 7", 10.1", and 15.6"
- Robust multi-touch glass front
- Protection class IP67
- Modern and slim design
- Power over Ethernet (PoE) for easy cabling
Technical data and features
| Processor | i.MX8M Mini Quad ARM Cortex-A53 (1.60 GHz) |
|---|---|
| Operating system | Linux |
| Display | 15.6" (39.6 cm), 1366 x 768 pixels Capacitive glass surface with multi-touch |
| Communication | Ethernet 10/100 Mbps |
