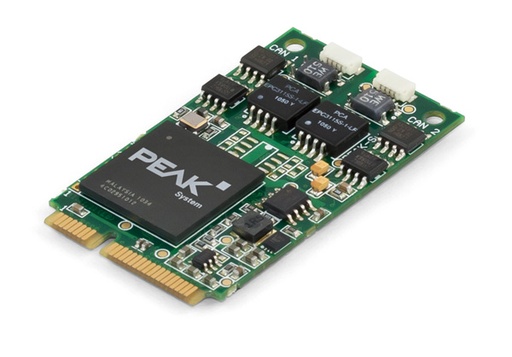

• CAN interface for the PCI Express Mini slot (uses PCIe lane)
• 1 or 2 High-speed CAN channels (ISO 11898-2)
• CAN bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 106)
• Bit rates from 5 kbit/s up to 1 Mbit/s
• Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• FPGA implementation of the CAN controller (SJA1000 compatible)
• NXP PCA82C251 CAN transceiver
• Galvanic isolation on the CAN connection up to 300 V, separate for each CAN channel
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Pin assignment D-sub

2 - CAN-L
3 - GND
6 - GND
7 - CAN-H
